Electronics, ESC
RE-ELT【RDスペック ブラシレスESC Elite】¥18,000(税別)




“Elite”(エリート)はRCドリフトに最適なパワー感と、スロットル操作にリニアに反応する高い操作性を高次元で両立させた100A ESCです。
ハイエンドユーザはもちろん、これからRCドリフトを始めるユーザーでも最適なドリフト走行をお楽しみいただけるよう、Rêve D開発チーム 松崎 隼人監修のドリフト用セッティングデータをプリインストール済の為、お手持ちのマシンに取り付けてすぐ”Elite”の性能をご堪能頂けます。
各種データの設定変更は専用アプリをダウンロードしたスマートフォンと”Elite”を、Bluetooth接続することで瞬時に変更が可能となり、”GENERAL”、”THROTTLE”、”BRAKE”、”BOOST”、”TURBO”の5項目から瞬時にセットアップを行えます。
※データ変更には別途 Elite用 Bluetoothモジュール(品番:RE-ELT-BT)が必要です。
放熱性の高いフルアルミ製筐体は全高16.5mmの薄型タイプを採用、クーリングファンも付属し長時間の走行にも余裕で対応します。
電圧低下を抑制する大容量キャパシターと14ゲージのブラックシリコンワイヤーはモーター、バッテリー用端子に配線済みとなります。
スタンダードESCの決定版、RDスペック ブラシレスESC”Elite”を是非お試しください!
【製品スペック】
■連続電流 :100A
■最大電流 :600A
■入力電圧 :2S-3S Li-Po
■BEC出力 :6.0V / 4A
■製品寸法 :L 38.0 / W 31.0 / H 16.5mm
■重量:48.5g
■設定変更 :スマートフォンを使用
■アプリサポート:Apple ios / Android
■防水 :非対応
■推奨車種 :1/10 ドリフト ラジコン
■付属品:大容量キャパシター、クーリングファン、14ゲージ ブラックシリコンワイヤー(配線済)
RE-ELT【RD Spec Brushless ESC Elite 】¥18,000(excluding tax)
Introducing the 100A ESC “Elite,” which combines a powerful feel and high response to meet the driver’s high-level throttle operation.
Drift setting data supervised by Hayato Matsuzaki of the Rêve D development team has been pre-installed so that it can be used by high-end users as well as those who are just starting out in RC drifting. Changes to various data settings can be made instantly by connecting a smartphone with the dedicated app to the “Elite” via Bluetooth.
※Note that an additional Bluetooth module for Elite is required for setup changes.

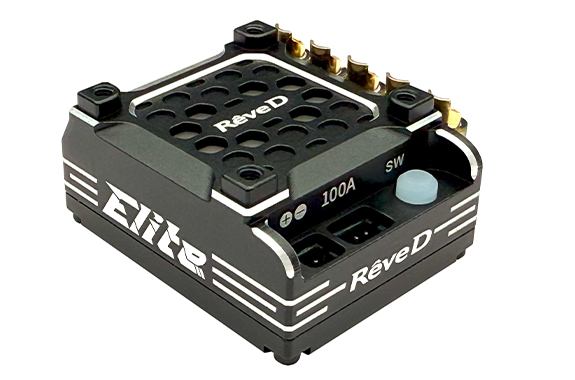

The full aluminum casing with excellent heat dissipation adopts a slim design with a height of 16.5mm and includes a cooling fan, enable for long runs.

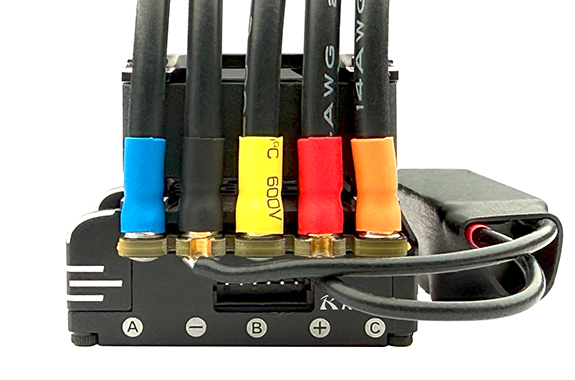

High-capacity capacitors that suppress voltage drop and 14-gauge black silicone wires are pre-wired to the motor and battery terminals. Be sure to try the definitive standard ESC, the RD specification brushless ESC “Elite”!
【Product specs】
■Continuous Current :100A
■Peak Current :600A
■Input Voltage :2S-3S Li-Po
■BEC Input :6.0V / 4A
■Size :L 38 / W 31.0 / H 16.5mm
■Weight:48.5g
■Program Via :Smart Phone
■APP Support :Apple ios / Android
■Waterproof :Not Available
■ESC Applicable :1/10 Scale Drifting
■Accessories :Large capacity capacitor、 Cooling fan、 Pre-wired 14 gauge black silicone wire
