RG-RVXB 【RWDドリフトカー用 ステアリングジャイロ REVOX(3ch専用)】¥13,800(税別)

  • このエントリーをはてなブックマークに追加

RWDドリフトサーボ専用ジャイロ “REVOX”です!

長期にわたり様々なシチュエーションでテストを重ね誕生した新機能「ジャイロカーブ設定」は、スキルや路面状況、コースレイアウト等に合わせ6段階に初期カーブ値を設定可能。
セットアップスイッチのクリックで瞬時に最適な設定がお楽しみいただけます。

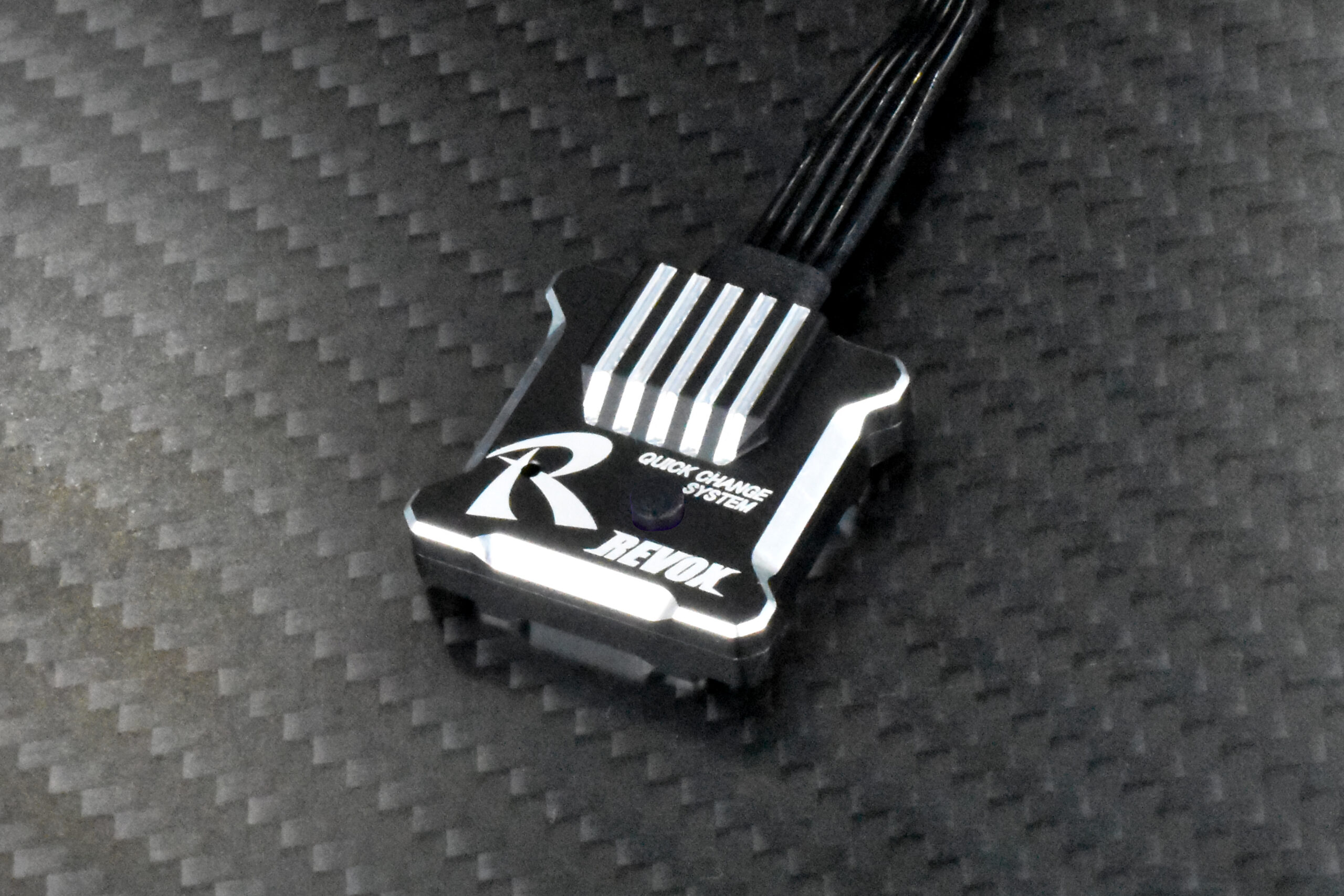

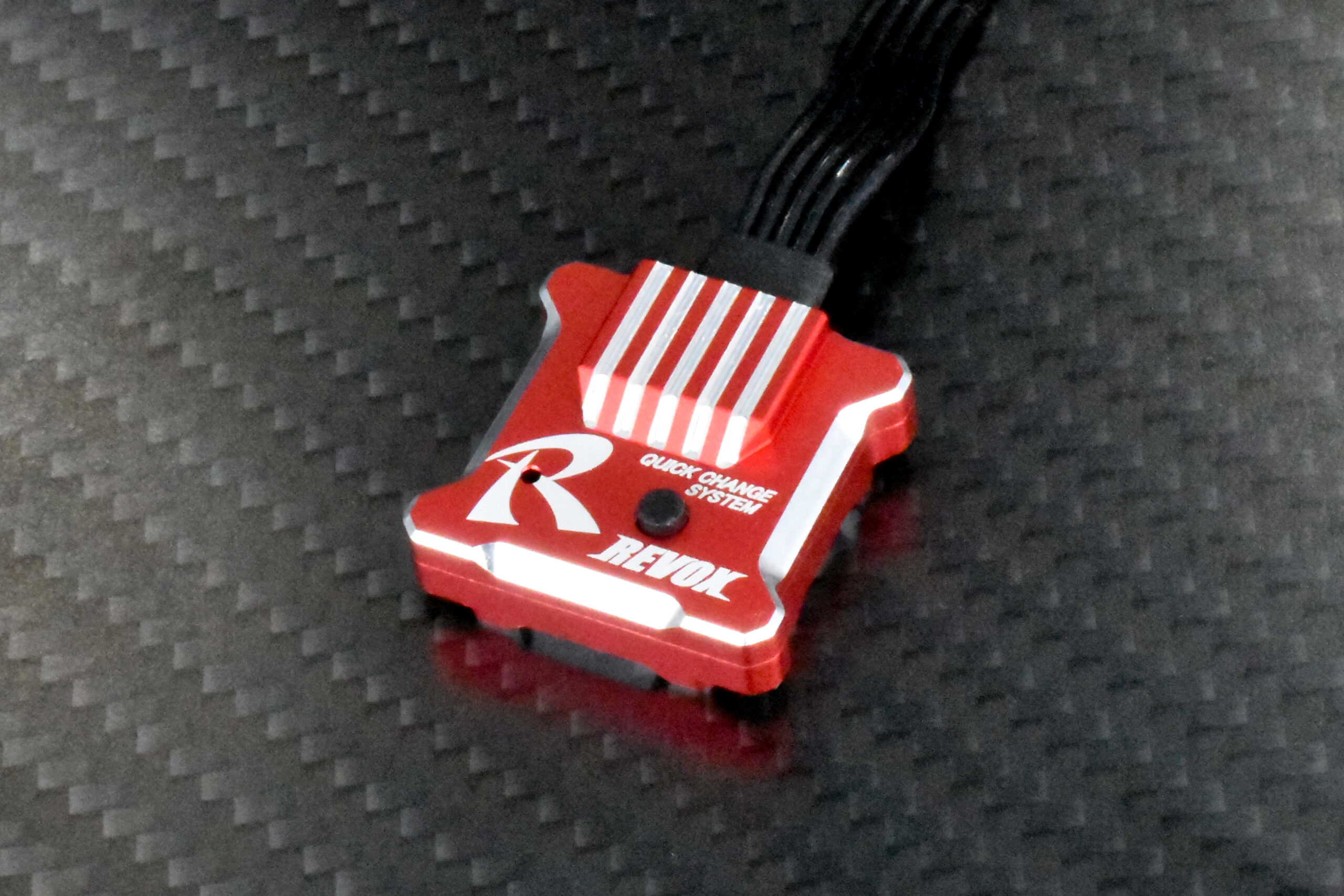

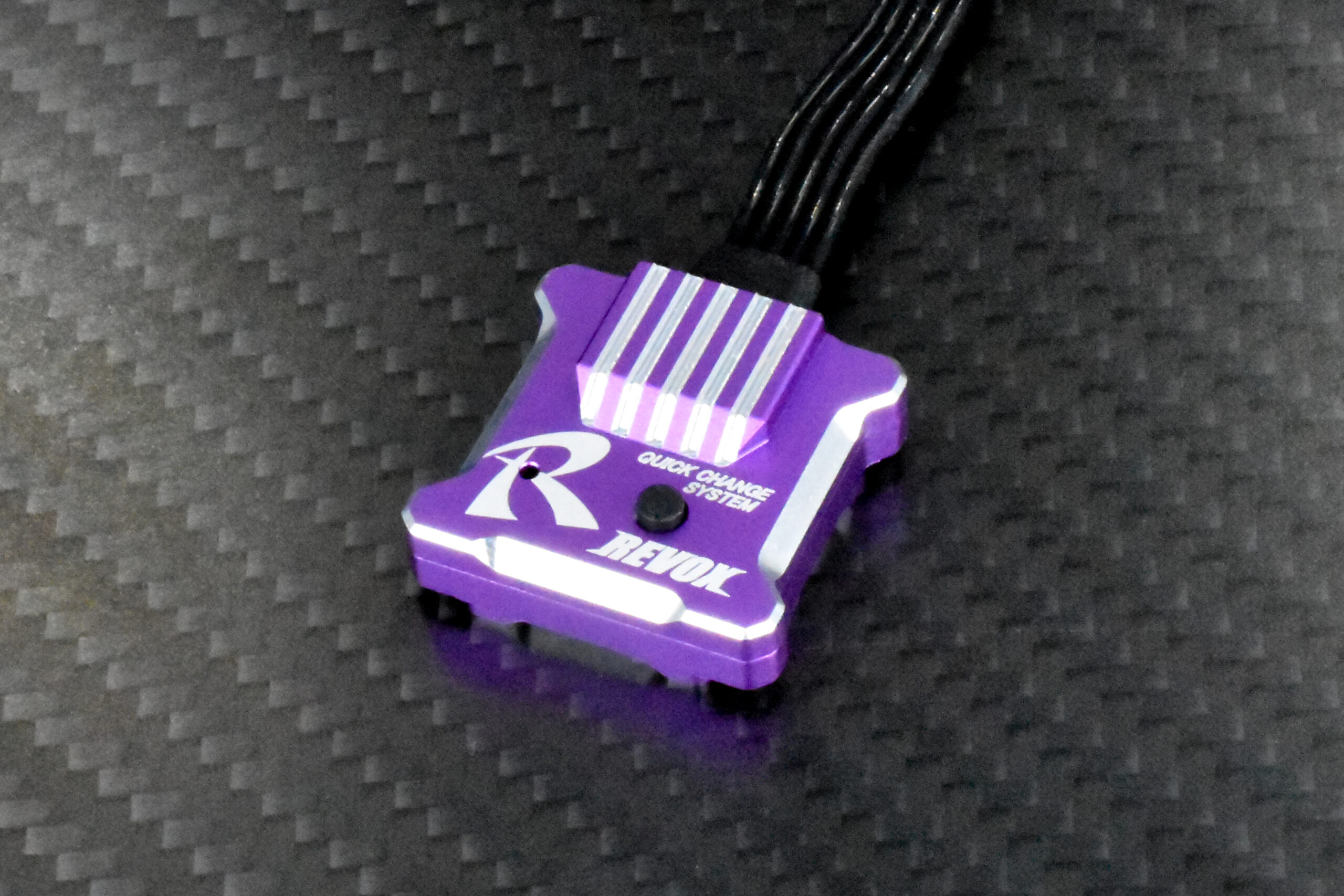

スイッチ類を大幅に簡略化したスタイリッシュなアルミ製筐体は、軽量コンパクトな設計で省スペースでも余裕で搭載可能。
一対のセットアップスイッチとLEDで「ジャイロカーブ機能」、「エンドポイント機能」、「リバース切替」のすべてを設定できます。
初心者から上級者まで満足できる操縦性と設定のしやすさを究極まで両立した、最新鋭ジャイロ“REVOX”を是非ご体感ください‼
※2023年9月発売分よりセットアップスイッチの色が赤から青に変更となりました。

■製品寸法
W:21.5mm / D: 23.5mm / H: 9.5mm
■製品機能
・ジャイロカーブ機能:6段階設定 (初期設定値 3 )
・エンドポイント機能
・リバース切替
・ゲイン調整:調整幅0~100
■設定事項
・本製品は3ch以上の送受信機専用です
・送信機1ch(ステアリング)のEPAは55以上に設定してください
・送信機3chのEPAは100に設定してください
(弊社RS-STサーボに付属の説明書に3ch EPAを110~120推奨と記載されていますが、REVOX使用時にはEPAを100に設定します)

【REVOX 説明書】
※REVOXの説明書はこちらのバナーをクリックしてご覧いただけます。

【REVOX 商品解説動画】
※REVOXの使用方法を解説した動画はこちらのバナーをクリックしてご覧いただけます。

【REVOX 商品解説動画 2 】
※2022年8月3日のYoutube LiveにてREVOXとUSBプログラマーのセットアップ方法を解説した動画はこちらのバナーをクリックしてご覧いただけます。

REVOXとRS-STサーボの組合せでご使用の場合は、USBプログラマーを用いてREVOX用プリセットデータをRS-STサーボにインストールすることをオススメします

【ソフトウエアは下記 DOWNLOAD ボタンをクリックしてダウンロードして下さい。】

【ダウンロードできない場合(1)】
ダウンロードできないと表示された場合は、以下をお試し下さい。
ダウンロード表示の削除ボタンの横にある、その他アクション ⇒ 保存 ⇒ 詳細表示 ⇒ 保持する ⇒ ファイルを開く
WindowsによってPCが保護されましたの画面が出た場合は ⇒ 詳細設定 ⇒ 実行を行います

【ダウンロードできない場合(2)】
下記をクリックしてダウンロードデータを解凍してお使いください。
ReveDConfV1.16



RG-RVXA【 Steering Gyro REVOX for RWD Drift Car(3ch only)】¥10,200(excluding tax)

Rêve D’s first RWD drift servo gyro “REVOX” is finally ready for release!

It Features a new function “Gyro curve setting” after repeated tests in various situations with many different drift specific servos over a long period of time, it can change the initial curve value in 6 stages according to skill, track surface conditions, track layout and so on.
The optimum setting is easily made by clicking the setup switch.
You can enjoy RC Drifting in several stages!
The stylish aluminum case, which greatly simplifies the switches, has a lightweight and compact design and can be installed in a small space.
A pair of setup switches and LEDs can be used to set all of the “gyro curve functions “endpoint function” and “reverse switching”.
Please experience the state-of-the-art gyro “REVOX” that has both the ultimate in manoeuvrability and flexibility.
Satisfying beginners and advanced users with ease of setup control!
※Starting with the September 2023 release, the setup switch color has been changed from red to blue.

■ Product dimensions
W:21.5mm / D: 23.5mm / H: 9.5mm

■Product features
・Gyro curve functions:6 stages
・Endpoint function
・Reverse switching
・Gain adjustment:width 0 to 100

■setting items
・This product can be used exclusively for radio sets that have3ch or more
・Set the EPA for transmitter 1ch(steering)to 55 or higher.
・Set the EPA for transmitter 3ch to 100.
( Although the instruction manual attached to our RS-ST servo states that 3ch EPA is recommended for 110to 120, set EPA to 100 when using REVOX )

【REVOX manual】
Click this banner to see the REVOX manual.

【REVOX product explanation video】
Click this banner to see a video explaining how to use REVOX.

【Please click the below “DOWNLOAD Button” to download the software on the Windows PC.】

If you can’t download(1)】
Generally, if it is displayed that it cannot be downloaded, you can download it by trying another way,   Other action ⇒ Save ⇒ Detailed display ⇒ Hold Other action button is located at next to the delete button in the download display.

【If you can’t download(2)】
Click below to decompress the download data and use it.
ReveDConfV1.16
